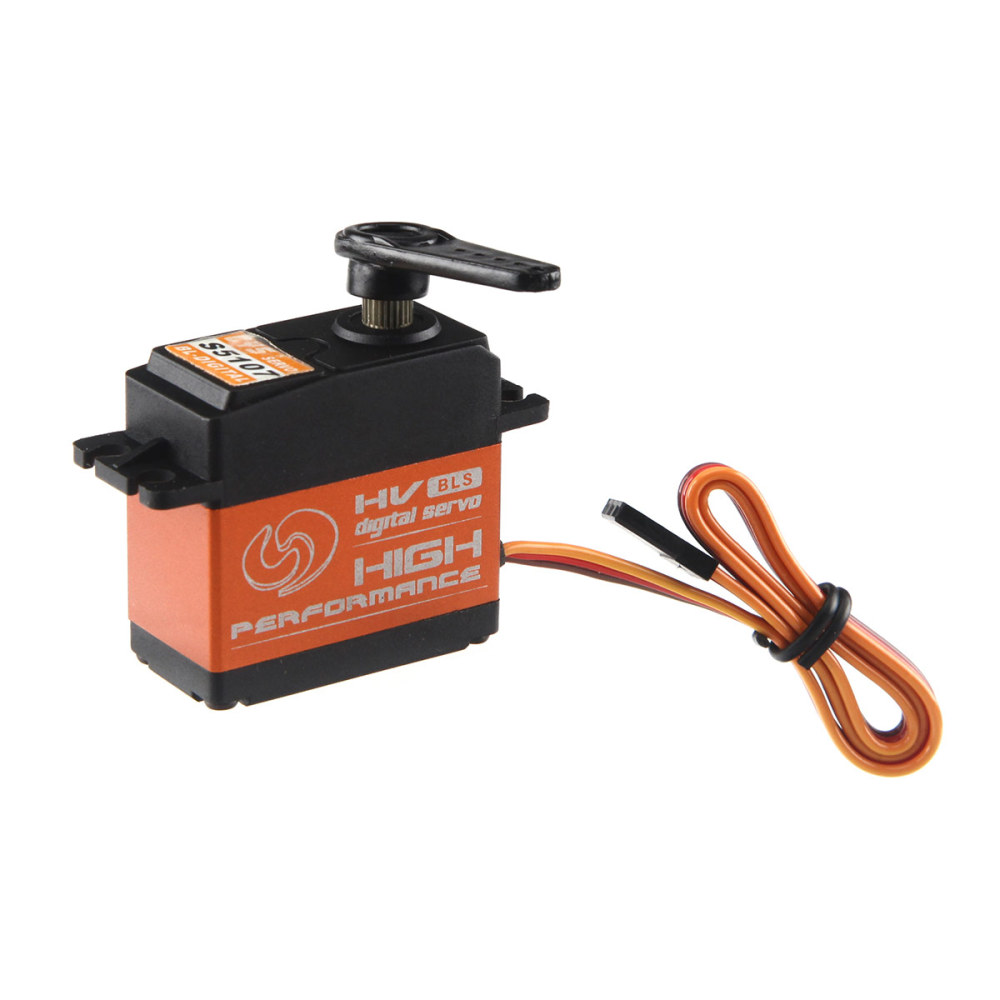

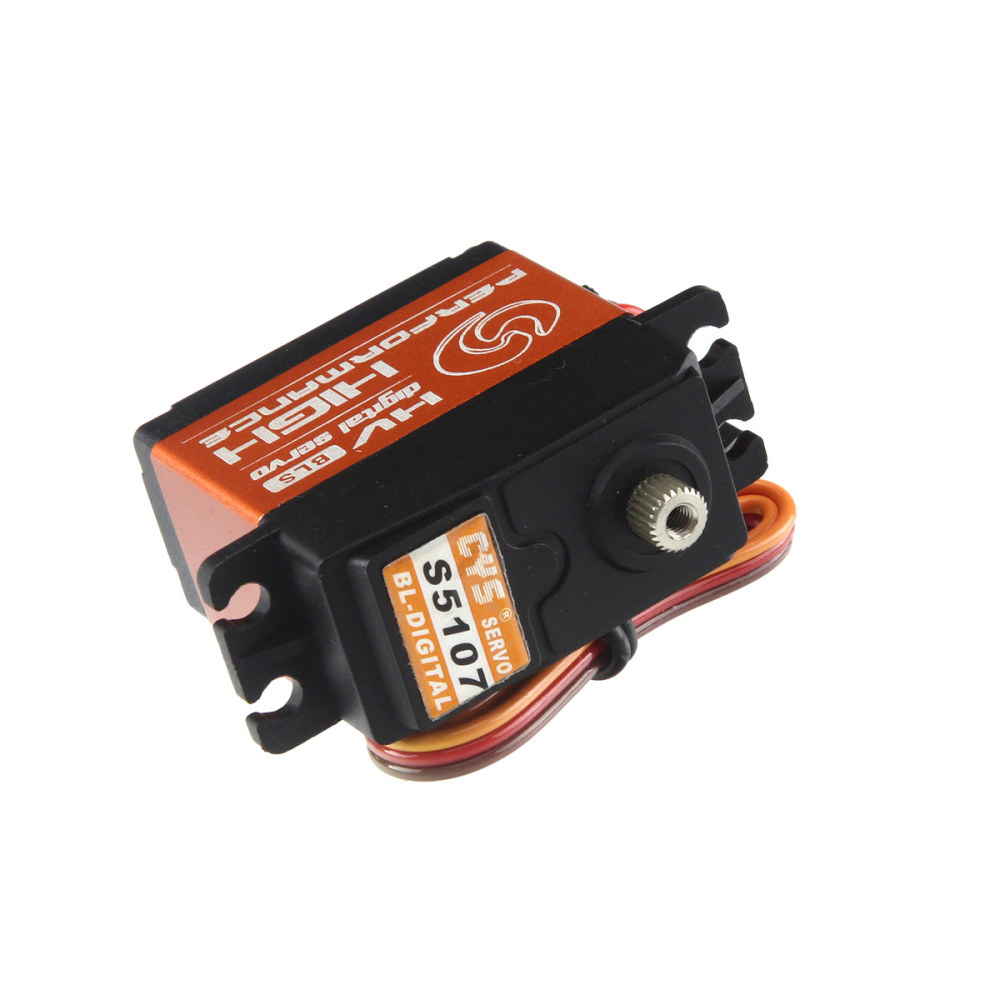

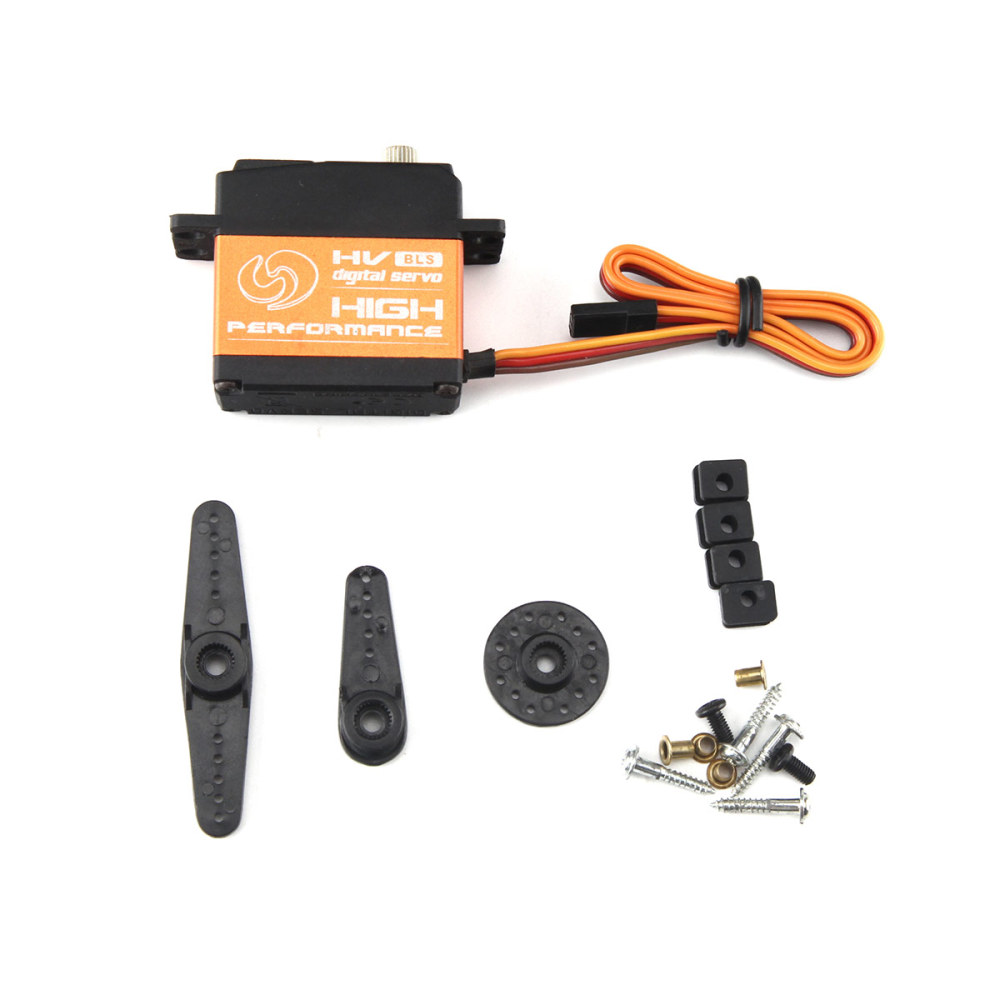

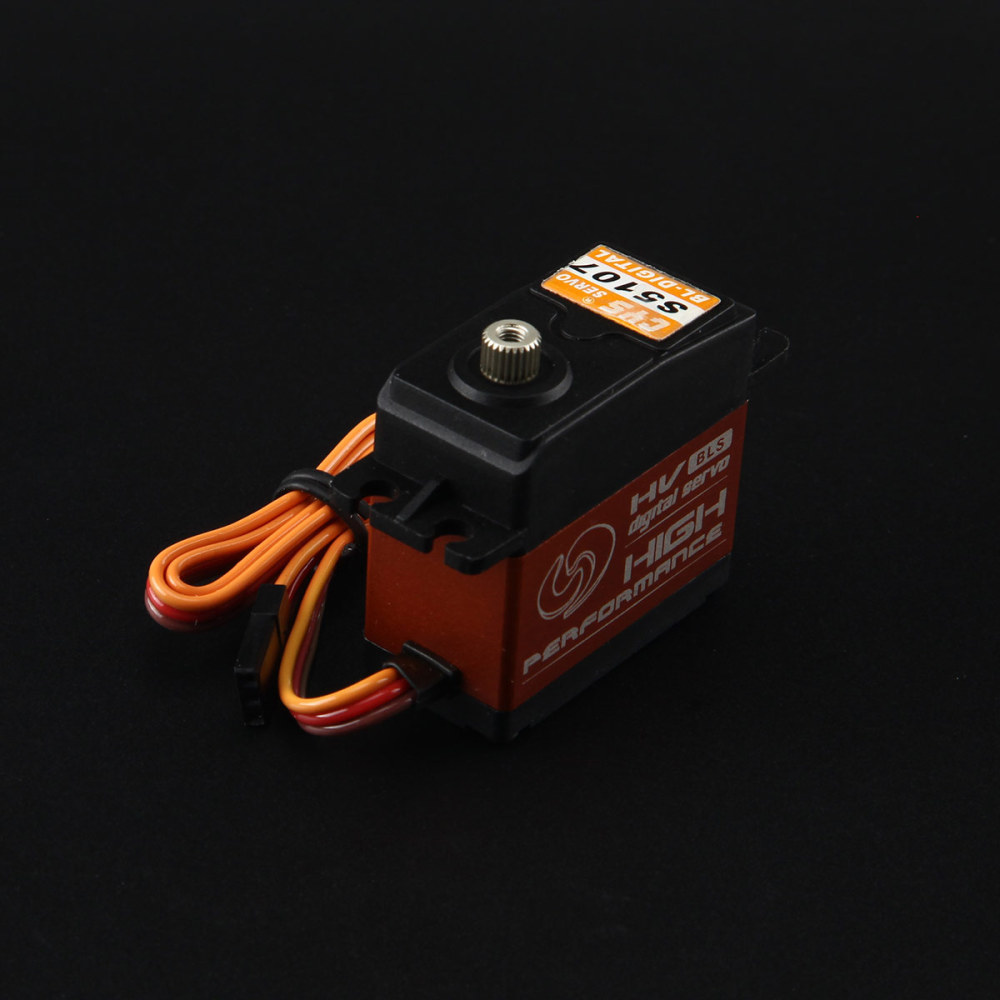

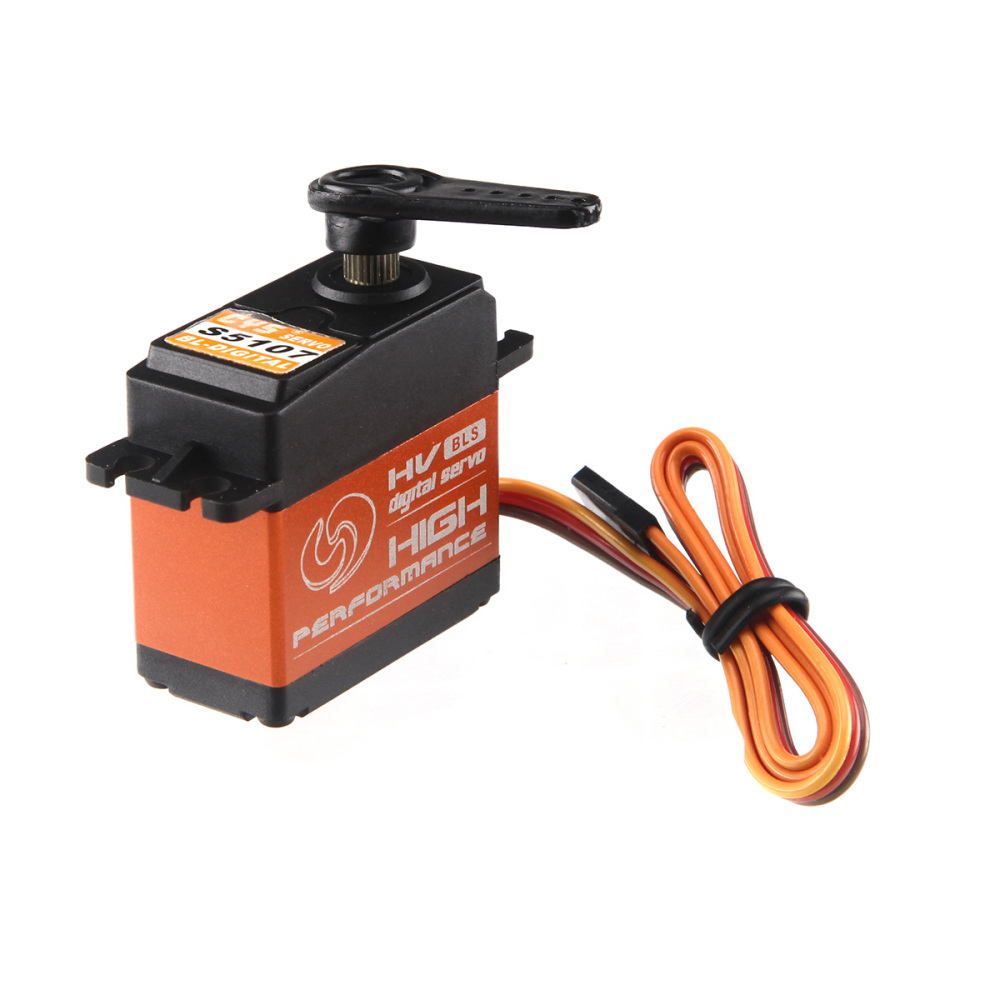

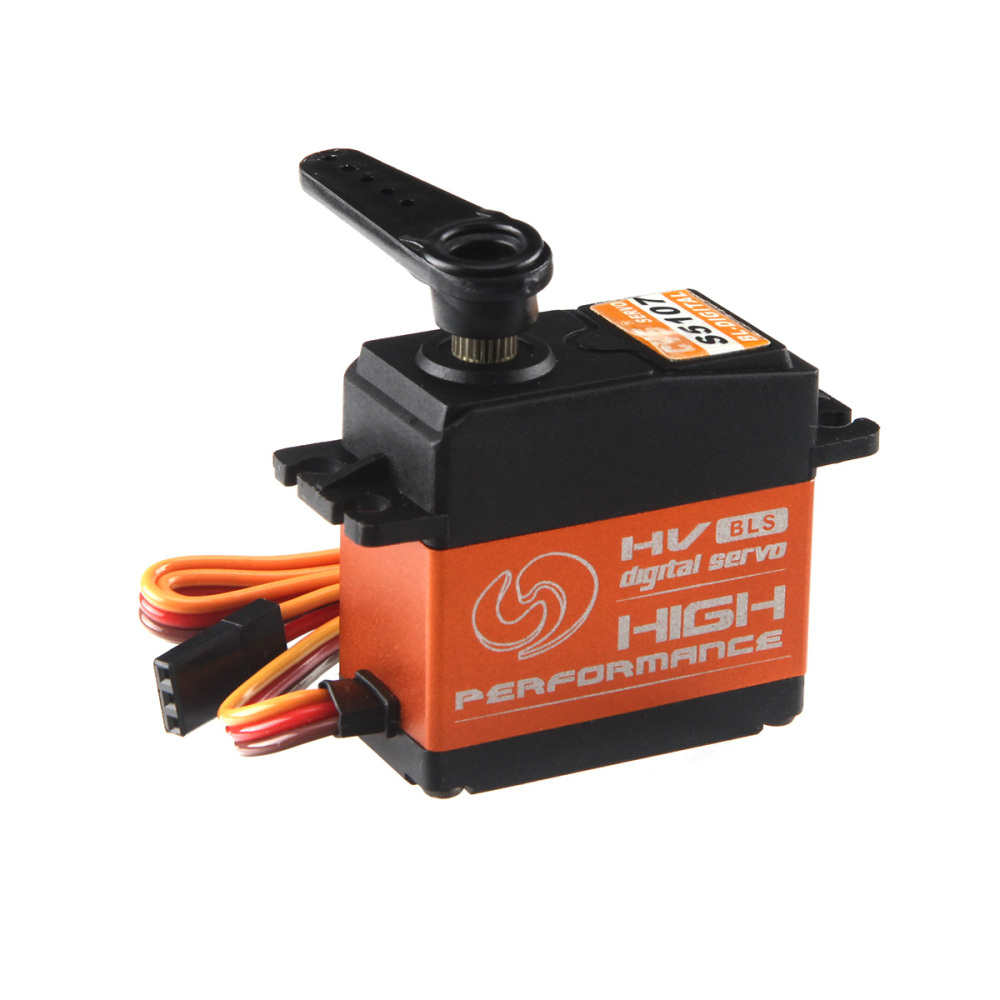

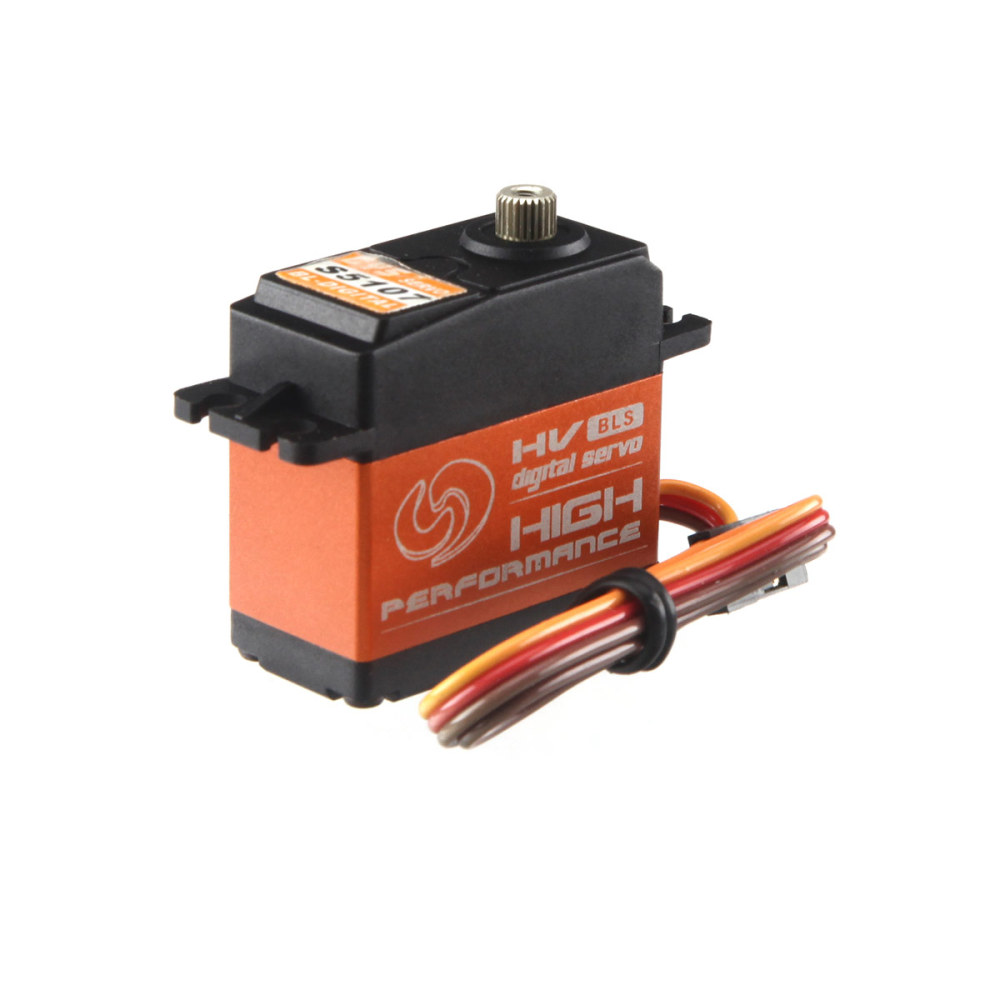

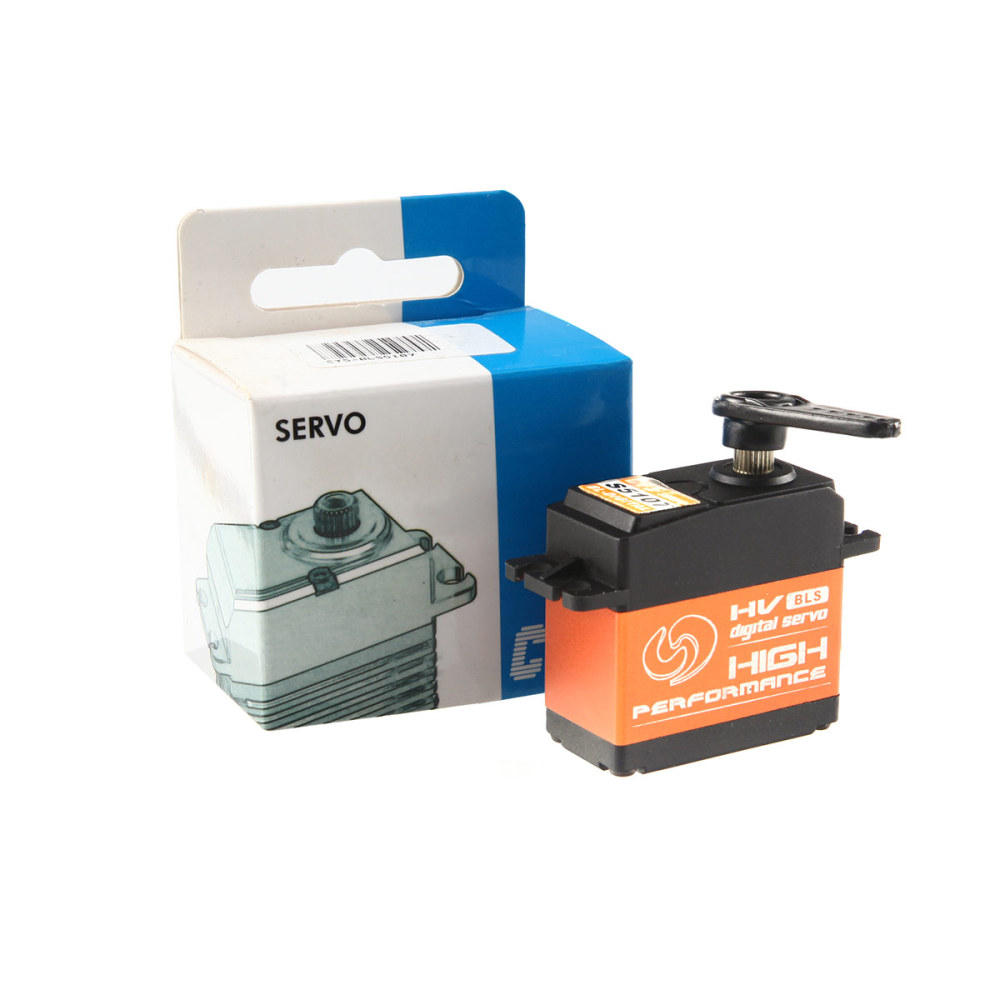

Item NO.: CYS-BLS5107 High speed brushless digital servo
Description : 7Kg brushless digital tail servo for rc helicopter
Size : 40*20*39MM
Torque : 6Kg.cm ~ 7Kg.cm
Speed : 0.06sec ~ 0.05sec/60 degree
Voltage : 6.0Volts ~7.4Volts
Weight : 64± 1 g
| Type | Digital |
|---|---|
| Weight | 64g±1g |
| Size | 40.3*20.3*39.2mm |
| Control System | (+)Pulse Width Control 1500usec Neutral |
| Operating Voltage | 6.0~7.4Volts |
| Operating Temperature Range | (-)10 to +50 degree C |
| Operating Speed (6.0V) | 0.06sec/60° at no load |
| Operating Speed (7.4V) | 0.05sec/60° at no load |
| Stall Torque (6.0V) | 5.5kg.cm |
| Stall Torque (7.4V) | 7kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 usec |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (6.0V) | 4mA/idle and 100mA no load operating |
| Current Drain (7.4V) | 5mA/idle and 120mA no load operating |
| Stall Current | 2.7A/3.2A |
| Dead Band Width | 2usec |
| Motor Type | Brushless motor |
| Bearing Type | Dual Ball Bearing |
| Horn gear spline | 25T |
| Gear Type | Titanium |
| Connector Wire Length | 300mm ± 5mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal |
